48core ODF Unit / 19'' Rackmountable Fiber Optic Distribution Unit / SC FC LC Optical Terminal Box
Description:
- ODF Unit use to install rack-mountable in the fiber optic distribution frame (also call diber optic cabinet).
- 19"standard installation has good versatility.
- It can be 12 cores, 24 cores, 48 cores, 72 cores, 96 cores and even 144 cores.
- The high of unit box can be 1U, 2U, 3U, 4U or 6U. We can supply full loaded with adapter and pigtail of diber optic ditribution unit.
- With common adapter port, we can use many type of fiber optic adapter on it such as SC, LC, FC square, ST, E2000, etc.
- It is specially designed for optical fiber communication equipment room.
- It has the function of cable fixation, protecting fiber cable terminating, wiring, distribution and protection of fiber cores and pigtails.
- ODF unit box, fiber optic splicing and distribution box, also named ODF fiber management system.
- It is used for cable inputting, fixing, protecting, and splicing with pigtails. The product is specially designed for fiber distribution in fiber optic communication service center.
- It can be installed in the distribution frame, and can be also assembly with digital distribution unit, and audio distribution unit together in one fiber optic composite cabinet.
- The product is with flexible configuration, easy to install and maintain, convenient to manage.
- It is the necessary device in termination of fiber optic network, and can realize the distribution at the intermediate route.
- The fiber optic distribution Unit is designed to use in the standard 19 inch fiber optic distribution frame.
Function & application
- Pigtail + adaptor terminating type ODF patch e Supporting high-performance optical cable grounding unit - panel,can support 12 ST/SC/FC pigtails fusing, 12 optical cable clamp splitter, integrating optical cable grounding ST/SC/FC adaptors terminating or 24 LC pigtails and high voltage protection functions in one fusing +12 duplex LC adaptors terminating.
- The full configuration of it includes an integrated tray, with cable fiber and pigtail fiber fusion protection, fiber connector plug adjustment, and transmission line marking function.
- Supporting accessing optical cable grounding unit, with optical cable introduction fixed protection, optical cable metal and frame insulation, high voltage protective grounding function
- It is especially suitable for the wiring connection between optical cable and optical communication equipment or between optical communication equipment in industry cabinet or communication cabinet;Used in indoor or outdoor watertight environment.
Dimension:
| P/N | Capacity | Dimension | Weight |
| KCO-ODFU-12 | 12 cores | 485x300x45mm | 3.9kg |
| KCO-ODFU-24 | 24 cores | 485x300x75mm | 4.7kg |
| KCO-ODFU-48 | 48 cores | 485x300x140mm | 6.9kh |
| KCO-ODFU-72 | 72 cores | 485x300x198mm | 9.2kg |
| KCO-ODFU-96 | 96 cores | 485x300x252mm | 11kg |
| KCO-ODFU-144 | 144 cores | 485x300x340mm | 14kg |

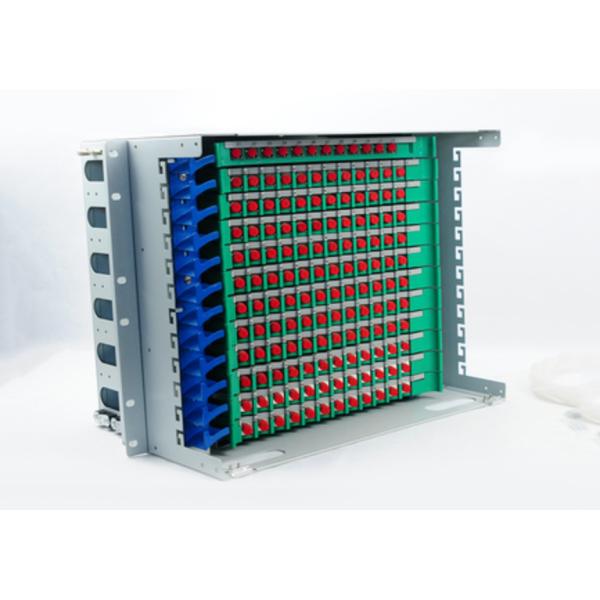

Product picutures:
Operating Conditions:
- Temperature -45~+85
- Relative humidity ≤85%(+30 C)
- Atmospheric pressure 70KPa~106KPa
Qualification:
- Nominal work wave-length:850nm,1310nm,1550nm
- Connectors loss ≤0.2dB
- Insert loss ≤0.2dB
- Return loss >=50dB(UPC),>=60dB(APC)
- Insulation resistance (between frame and protection
- Grounding) >1000MΩ/500V(DC)
ODF Cabinet:
OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.
Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
